Enhancing MRI diagnosis of myocarditis using deep learning and generative adversarial networks

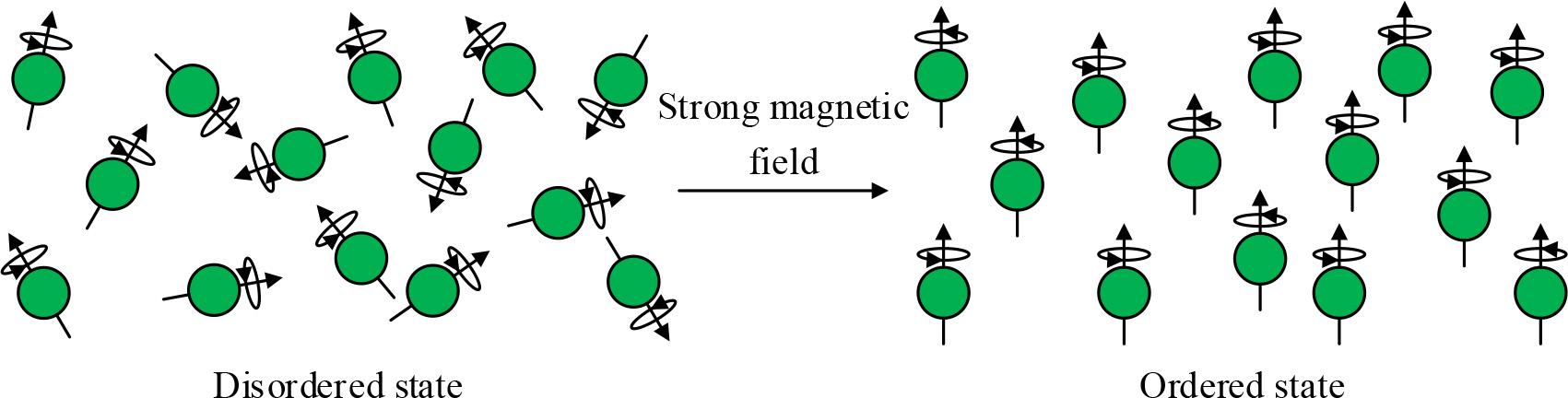

The changes of atomic nuclei under a strong magnetic field are shown in Fig. 1. When an MRI scan is performed on a patient, the hydrogen nuclei in the patient’s body are not only aligned in the direction of the main magnetic field, but also spin in an approximate frequency, but their phases in spinning are randomized, which produces a reticulated longitudinal magnetization in the direction of the main magnetic field.

Figure 1.

The change of atomic nuclei under a strong magnetic field

The change of the phase of atomic nuclei under RF pulse is shown in Fig. 2. Taking a tissue section as an example, the spinning in of all the hydrogen nuclei within the section is changed to the same phase under the RF pulse, and the nuclei are tilted to the x-y plane, and the longitudinal magnetization starts to decrease in this case, and a new transverse magnetization is gradually generated.

Figure 2.

The phase change of the nucleus under RF pulse

The nuclei in the human body begin to return to their initial equilibrium state at the end of the RF pulse, and the pointing of the nuclei returns to the longitudinal direction again, a process known as relaxation. The relaxation process is divided into two types: the first is transverse relaxation, i.e., the transverse magnetization weakens and disappears at an exponential rate, and the time consumed by this process is called the constant T2; the second is longitudinal relaxation, i.e., the longitudinal magnetization returns to its original value at an exponential rate, and the time consumed by this process is called the constant T1. Remain constant, and the differences in relaxation times of different tissues form a fundamental element of MRI imaging. By varying the time between excitation of the nuclei and the time between excitation and the start of data collection, it is possible to control the emphasis of specific tissue features.

The rate at which the intensity component M_z of the longitudinal magnetization returns to the initial state M₀ is proportional to the degree of departure from the initial state, and thus there is: (1) dMzdt=−Mz−M0T1 where the negative sign indicates the recovery process, T₁ is the time required for the longitudinal magnetization to recover to 63% of the original magnetic vector, and the M_z recovery expression can be solved after the action of a 90° pulse as: (2) Mz(t)=M0(1−e−t/T1)

The transverse magnetization strength M_xy decays with time according to the law of Eq. (3): (3) dMxydt=−MxyT2

T₂ is the time required for the transverse magnetization to diminish to 37% of the original magnetic vector, and the solution of Eq. (3) after the action of the 90° pulse is: (4) Mxy(t)=Mxymaxe−t/T2

Transverse magnetization and longitudinal magnetization synthesize the total magnetic vector and move in a spiral motion with changing intensity and direction, the MRI spectrometer senses the current and begins to receive the signals emitted from the body, the current signal induced by the total magnetic vector gradually decreases and finally disappears but the frequency remains the same. The strongest signal is obtained after 90° pulse and the MRI image is reconstructed and the value of the signal received by the MRI spectrometer M is: (5) M=M0(1−e−TR/I1)e−TET2

The RF pulse sequence determines the contrast of the tissue signal; for long TRs (greater than 1500ms), the T₁-contrast does not play a role and the signal difference is determined by the proton density. When the TE is very short (less than 20 ms), the T₂-contrast difference is small; when the TE is greater than 50 ms and less than 200 ms, the signal intensity difference depends on the T₂. For spin-echo pulse sequences, T₂-, T₂-, and PD-weighted images can be obtained using different TRs and TEs, respectively.

The MRI operator can control the method of data collection and image reconstruction, for example, by changing the strength and rate of change of the auxiliary magnetic field, the pulse duration, and the sequence of data acquisition to change the artifactual effect of the image, the field of view, the contrast, the resolving power, and the speed of the acquisition, etc. The essence of these controls lies in the alteration of the K-space, which is fundamentally different from other imaging.

In myocarditis MRI, to better understand the imaging process, it is assumed that the heart area is partitioned into many small pieces, each of which is called a voxel. Assuming that a heart region is divided into sixteen voxels, the number of protons in each voxel is represented using shades of color, with lighter colors indicating a small number and darker colors indicating a large number, quantified as ρ(x,y).

In the actual measurement of hydrogen atoms, the measurements are derived from all the hydrogen atoms in the entire brain region. In order to obtain the number of hydrogen atoms in each voxel, a weighted integral about the concentration of hydrogen atoms is obtained by an additional gradient magnetic field: (6) S(t)=∬ρ(x,y)dxdy

The spatial variation of the magnetic field gradient demonstrates the inhomogeneity of the magnetic field and therefore allows the expression of each measured value: (7) S(kx,ky)=∬ρ(x,y)e−i2π(kxx+k,y)dxdy

Eq. (7) is a Fourier transform (4FFT) expression, while S(k_x,k_y) is the weight of the Fourier transform of the image in the frequency bases k_x and k_y, which is an important link between the measured signal and the image. k_xx+k_yy indicates that the magnetic field varies spatially along the x and y axes of the gradient, and when the values of k_x and k_y are continually changed, many S(k_x,k_y) can be measured. S is a binary function with respect to k_x and k_y, and the image of this function is referred to as K space.

Each point on the K-space is involved in the formation of the signal at all points on the MR image, so each point on the MR image does not correspond to each point within the K-space. In MRI, the middle of the K-space concentrates low-frequency information and has a decisive effect on the contrast of the MR image, while the edge of the K-space concentrates high-frequency information and has a decisive effect on the spatial resolution of the MR image. Therefore, the quality of MR images can be controlled by changing the K-space, which is fundamentally different from other images in terms of imaging principle, and by changing the K-space to control the image contrast, resolution and other characteristics.

Currently, MRI systems and CT systems in the field of medical imaging are very mature and are the main imaging modalities in modern medicine.MRI and CT have their own advantages and disadvantages, and to a certain extent, they can also complement each other. Table 1 shows a comparison of the performance of MRI and X-ray CT. The gray and white matter produced during MRI has a high contrast, resulting in a high quality cross-sectional image of the heart, which has led to a new stage in the diagnosis of conditions in the central nervous system.Table 2 shows the grayscales of normal human tissues on T1-weighted and T2-weighted.

To summarize, the advantages of MRI include (1) high soft tissue contrast without bone artifacts, (2) multiparametric imaging such as T1-weighted, T2-weighted, and PD-weighted, (3) multidirectional tomography including coronal, sagittal, and transverse planes, (4) cardiovascular blood flow imaging, (5) molecular level diagnosis, (6) good contrast enhancement with fewer reactions, and (7) high sensitivity to show lesions.

The shortcomings of MRI include (1) long imaging time, (2) motion artifacts, (3) insensitivity to show calcified foci, (4) specificity and accuracy of lesions are still not high, (5) more contraindications, and (6) high cost of examination.

A GAN consists of a generator G and a discriminator D, which are trained in competition with each other in the framework of adversarial training aimed at learning the probability distribution of real sample data [22]. The generator endeavors to generate fake data similar to the real samples by receiving input noisy data and learning to capture the latent distributions of the real data samples in order to confuse the discriminator’s inability to accurately discriminate the true from the false. Meanwhile, the discriminator works to do its best to determine the authenticity of the input data. Through mutual confrontation and optimization in the training process, the generator and the discriminator continuously improve their respective generating and discriminating abilities, gradually approaching the Nash equilibrium, in which the fake data generated by the generator can more realistically simulate the real data, while the discriminator can more accurately distinguish the real data from the fake data.

The network structure of GAN consists of two parts: generator network and discriminator network.

2)

Discriminator

In the GAN model, the discriminator and generator, whose role is to determine whether a sample is from a real data set, belongs to the binary classification problem. The structure of the discriminator uses a feed-forward multilayer neural network, the input is a real sample or a fake sample synthesized by the generator, and its output is a real-valued score, which is used to determine whether the input sample is from the real data distribution or the output of the generator. Specifically, the input of the discriminator first passes through multiple fully connected layers, and each hidden layer is followed by a ReLU activation function, which gradually extracts the features of the input sample. Finally, a sigmoid activation layer is connected, and the output of the discriminator is a real-valued score between 0 and 1, which indicates the probability that the discriminator considers the input sample belongs to the real data distribution. During training, the discriminator aims to output a high score close to 1 for real samples and a low score close to 0 for fake samples synthesized by the generator. By training against the generator, the discriminator is forced to continuously improve its discriminative ability to accurately distinguish the more realistic synthetic samples output by the generator.The adversarial relationship between G and D in GAN is shown in equation (8): (8) minGmaxDV(G,D)=EX∼Pdata(x)[ logD(x) ]+Ez∼pz(x)[ log(1−D(G(z))) ]

In the above equation (8): x denotes the image data, z is the input G noise, G(z) is the image generated by the generator, p_data(x) is the data distribution of the real image, p_z(x) denotes the noise distribution generated by the noise z after passing through the G network, and E denotes the expectation function.

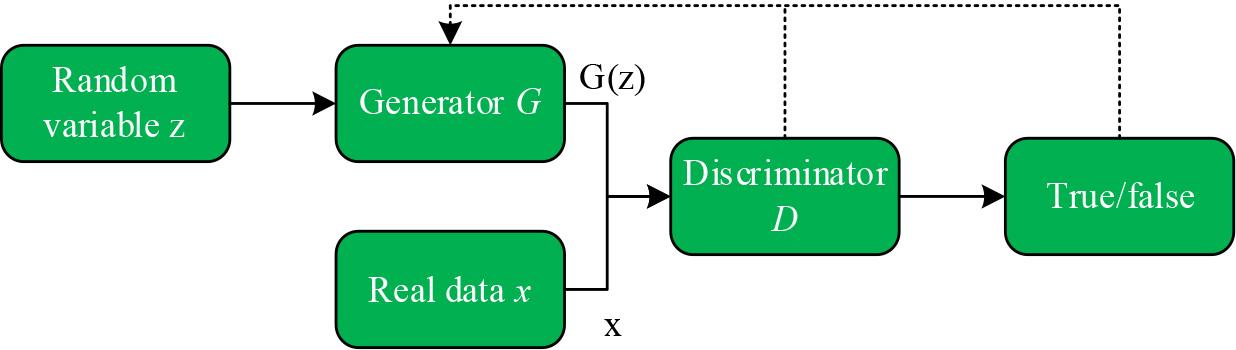

The network structure of the basic GAN model is shown in Fig. 3. First, a set of random noise variables z is input into the generator G to obtain the generated data G(z). Then, G(z) is input into the discriminator D together with the real training data x. The discriminator D judges the input data and the output value is the probability that the input data is from the real data distribution p_data(x). As the distribution of G(z) gets closer to the real data distribution, the value of D(G(z)) tends to be 1, i.e., the probability that D determines G(z) to be real data is higher. Conversely, when the G(z) distribution is closer to the real data distribution, the value of D(G(z)) tends to 0. By repeating this confrontation process, the generator G gradually improves the fidelity of the generated data, and the discriminator D is forced to improve its discriminative ability to distinguish between the more realistic fake samples generated by G the generator. When the output of D stabilizes around 0.5, it means that D is unable to distinguish the authenticity of G(z), and the training process converges. Eventually, G is able to generate high-quality samples with distributions comparable to those of the real data.GAN realizes unsupervised generative model training through the dynamic confrontation between generators and discriminators.

Figure 3.

Network structure of basic GAN model

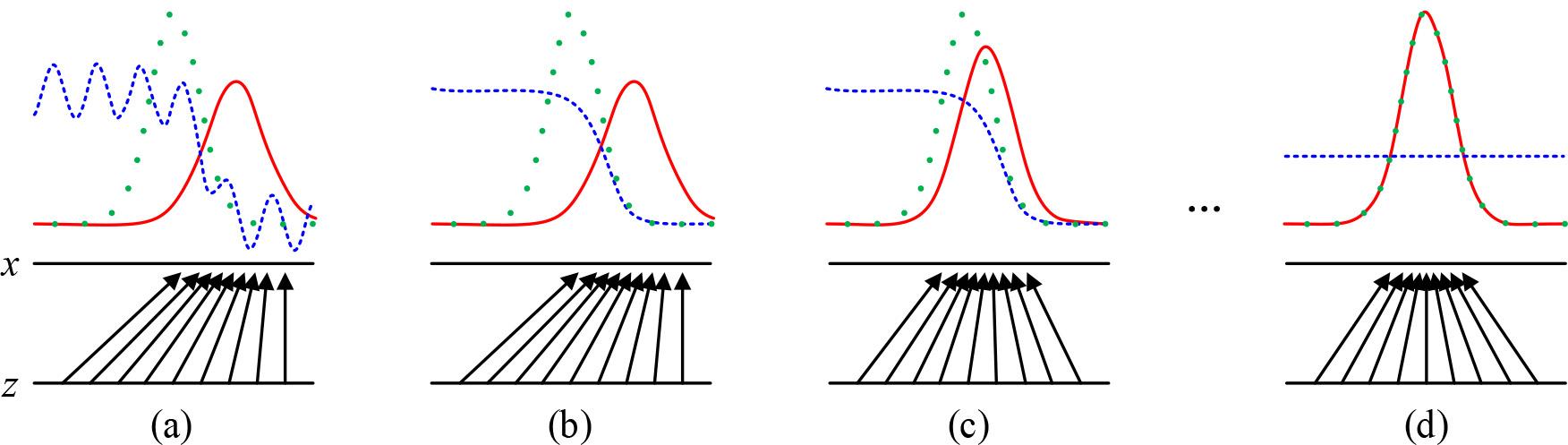

The training process of the Generative Adversarial Network (GAN) is shown in Figure 4.The training process of the GAN uses an alternating optimization approach where each iteration is divided into two phases. In the first phase, the discriminative model is fixed and the generative model is optimized so that the data it generates can be recognized as real as possible by the discriminative model. In Phase II, the generator is fixed and the discriminative model is optimized to improve its discriminative accuracy. Stages I and II are then looped and training is continuously performed, ultimately causing the generator to produce data similar to real data.

Figure 4.

Generate a training process for adversarial networks (GAN)

In Fig. 4, x denotes the real sample data, z denotes the random noise vector input to the generator, the green dotted line denotes the real data distribution, the blue curve is the probability distribution of the discriminator’s discriminative output of the real and generated data, and the red solid line denotes the synthetic data distribution output by the generator. (a) The figure indicates that both the discriminator and generator are not trained to be randomly distributed, and at this time the discriminator cannot accurately determine whether the incoming data is real data or generated data. (b) The figure shows that after fixing the generator, the discriminator is trained and optimized, and the distribution of the output is close to 1 (true) in the interval of the “true” data distribution of the training set, and 0 (false) in the interval of the “false” data distribution generated by the generator, which means that the original data can be judged more accurately. That is, it is possible to more accurately determine the original real data or generated data after. (c) The figure shows that at this time the fixed discriminator, training generator, so that the output distribution of the generator converges to the distribution of real data. After the alternating training of steps (b), (c), (b), (c)…, it gradually makes the proximity of the data distribution of the generator’s output to the distribution of the real data smoother until it reaches the situation of figure (d), at this time, the green dotted line and the red solid line are completely overlapped, and the distribution of the generator’s output completely fits the distribution of the real data, which indicates that the generator learns the real normal distribution of the data.

The experimental data were provided by a hospital, and the data contained a total of 30 patients’ myocarditis MRI images, with about 180 sets of image data for one patient. One data set included one plain myocarditis MRI image without contrast injection and five enhanced myocarditis MRI images at five moments (moments 1-5) after injection of a conventional dose of contrast agent. The contrast agent used for injection imaging was gadopentetate dextran, with a contrast concentration of 0.1 mmol/kg, which was injected intravenously at an injection rate of 2 ml/s, followed by an injection of 50 ml of saline at the same rate in order to generate myocarditis-enhanced MRI images. When taking the enhanced MRI images, the 1-moment enhancement image was taken 30 seconds after injection of the contrast agent, and then every 90 seconds thereafter to obtain 5-moment enhancement images. The captured images had a size of 784 × 784 pixels, with a resolution of 0.45 mm corresponding to each pixel in the X- and Y-axis directions, and were divided into dataset A (MRI-weighted images of the myocarditis dataset) and dataset B (MRI images of myocarditis), to provide data support for subsequent research work.

The initial image format is DICOM format, first the image format is transformed to NII format file for saving using Python tool. The images were all 784×784 pixels in size and were cropped to 480×768 pixels in order to remove some of the black background area. Given that the data provided by the hospital in this experiment consisted of only 5400 sets of myocarditis MRI 2D images, the experimental data were expanded using data enhancement. The synthesized dynamic enhanced MRI images of myocarditis were then inverse normalized to obtain the data set form and stored.

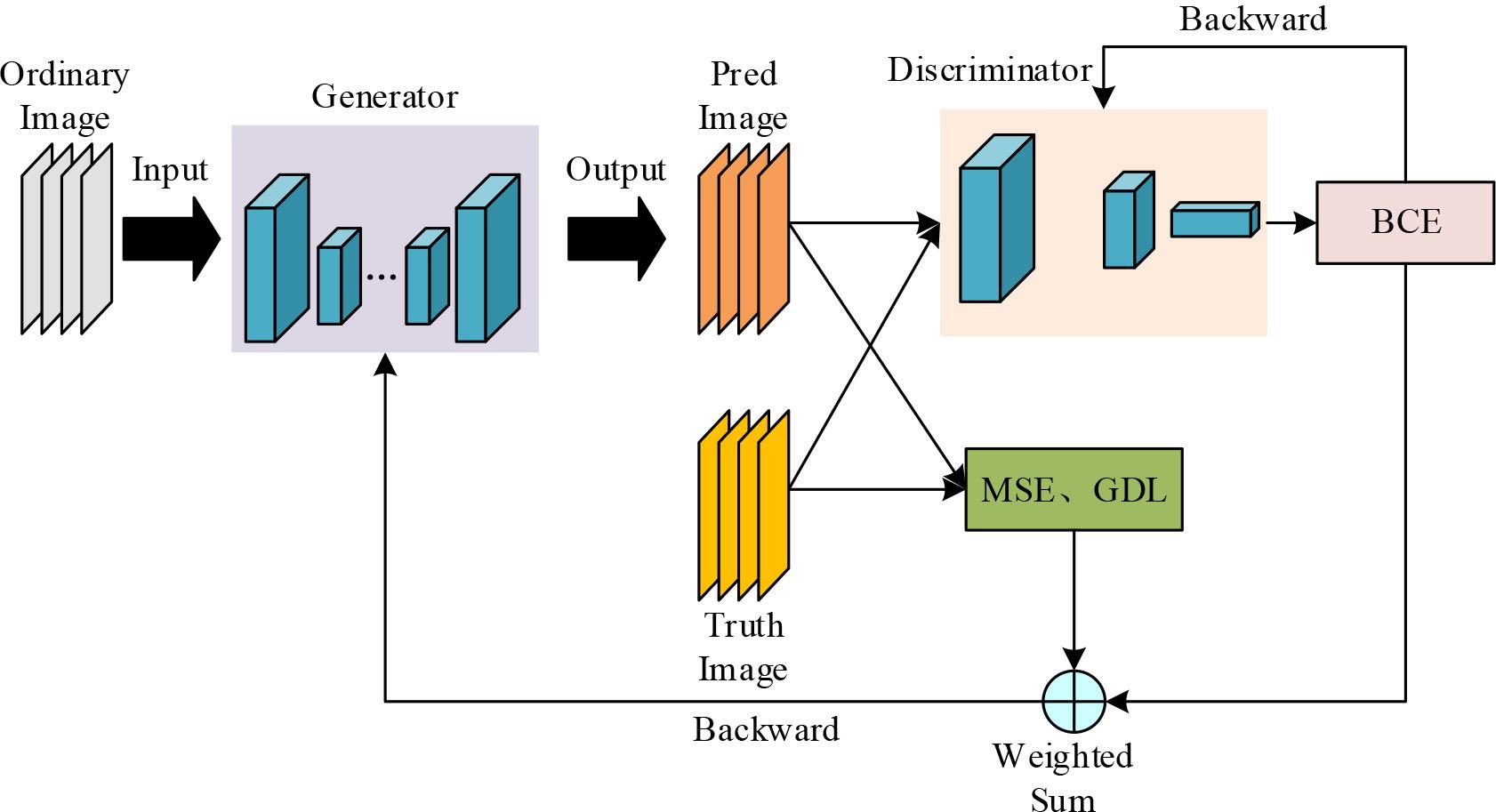

The structure of the improved GAN network is shown in Fig. 5. Original Image denotes the image input to the generator, which in this chapter is the myocarditis MRI image at moment 0. Generator is the generator, which uses the improved U-Net network structure. Fake Image and Real Image denote the myocarditis-enhanced MRI image generated by the generator and the real myocarditis The Discriminator is a ResNet-34 structure that acts as a discriminator for the improved GAN network. The output result of the discriminator is calculated with the given label to calculate the binary cross entropy and then adjust the discriminator parameters by back propagation, BCE is the binary cross entropy in the figure. To train the generator, it is necessary to calculate MSE and GDL from the image generated by the generator and the real image, and input the generated image into the discriminator, get the predicted probability and then calculate BCE according to the label, and then use the weighted sum of MSE, GDL, and BCE as the loss function, and back-propagate in order to adjust the generator parameters.

Figure 5.

Improved GAN network structure

Myocarditis MRI image features are complex, the discriminator needs to extract more high-dimensional features in order to ensure its good performance, but at the same time, it also needs to consider the balance with the performance of the generator, so the discriminator adopts the structure of ResNet-34, which consists of a number of two-layer residual units stacked with two-layer residual unit structure.

U-Net is a deep learning network model. The network is similar to a traditional convolutional neural network, but there are differences.The U-Net network consists of four down-sampling blocks and four up-sampling blocks, each down-sampling block consists of two convolutional layers stacked with a pooling layer; each up-sampling block consists of two convolutional layers stacked with an inverse pooling layer, and finally, a dimensionality reduction operation is achieved by a 1×1 convolution to bring the network’s result output. Increasing the pooling layer can expand the receptive field, but the resolution of the lesion region in the MRI image of myocarditis is small, thus more features of the lesion region will be lost. In order to solve the above difficulties, the residual module is integrated in U-Net, which improves the problem of gradient vanishing while extracting more high-dimensional features.

In this section, three different datasets are used to evaluate the performance of the proposed model in this paper, including dataset A (MRI-weighted images from the myocarditis dataset) with dataset (MRI images of myocarditis) B. Dataset A was preprocessed to obtain 46,240 2D slices, and the data were divided into training, validation, and test sets according to the ratio of 3:1:1. Data set B contains 50 multimodal myocarditis MRI scans, and we used 2443 slices as the training set and 703 slices as the test set. Containing 1361 myocarditis MRI scans, we used 11,193 2D slices as the training set and randomly selected 3,500 slices as the test set.

The GAN method proposed in this section is implemented using the Python language based Pytorch framework and in a hardware environment with 11G Nvidia GeForce RTX 4080Ti GPUs. In the training phase, we optimize the network using the Adam optimizer and the dynamic learning rate with the initial value set to 0.0001, the batch size set to 25, and the training iteration period set to 500.To avoid overfitting and to improve the generalization ability, the model is optimized using a five-fold cross-validation. Specifically, the input dataset is randomly divided into five equal parts, with one part as the validation set and the remaining four parts as the training set each time, and the cycle is repeated five times, using a different validation set each time. This chapter evaluates the performance of the model on each validation set and takes the average value as the final result.

In this section, the reconstruction accuracy and quality of the proposed model is evaluated using the experimental evaluation metrics Peak Signal to Noise Ratio (PSNR), Structural Similarity Index (SSIM).PSNR is used as a measure of the reconstruction quality of an image, which shows the loss of detail in the reconstructed image.PSNR is defined as follows: (9) PSNR=10⋅log10(L2MSE) Where, L denotes the maximum value of the image pixels, N denotes the number of all pixels in the image, the larger the PSNR the higher the quality of the image reconstruction.

SSIM is a measure of similarity of brightness, contrast and structure between reconstructed image and real image, which measures the degree of similarity between two images.SSIM is defined as follows: (10) SSIM(I,I^)=(2μIμI^+C1)(σII^+C2)(μI2+μI^2)(σI2+σI^2+C2) where I and Î denote the true and predicted images, μ and σ² denote the mean and variance, σ_IÎ denotes the error between I and Î, and C₁ and C₂ denote the constant smoothing term, where the closer SSIM is to 1, the more similar the enhanced image is to the true image.

The regional mean square error (MSE) is commonly used to calculate the similarity between two target images, which is based on the overall degree of similarity between the two images, since the formula is calculated using the average of the overall differences. In this subsection, MSE and RMSE are used to measure the difference between the network-predicted myocarditis-enhanced MRI image and the real myocarditis-enhanced MRI image as the basis for adjusting the parameters of the network back propagation.MSE and RMSE are defined as shown in equation (11)(12): (11) MSE=1h×w∑i=0h−1∑j=0w−1[ T(i,j)−P(i,j) ]2 (12) RMSE==1h×w∑i=0h−1∑j=0w−1[ T(i,j)−P(i,j) ]2

In Eq. (11), h·w is the number of sample pixels, h and w are the length and width of the image, respectively, T(i,j) is the real image, P(i,j) is the predicted image, and the mean absolute error (MAE) and the root mean square error (RMSE) will be used to compare the degree of discrepancy between the synthetic MRI image and the reference MRI image in the experiment. Where the mean absolute error is used to represent the average of the absolute errors between the predicted and real values, and the root mean square error is used to represent the square root of the average of the squared errors between the predicted and real values, MSE the calculated value range is in the interval of [0,1], and the closer to 1 means that the difference between the two images is larger, and the closer to 0 means that the difference between the two images is smaller, which means that the image predicted by the network is closer to the real myocarditis-enhanced MRI.

PCC denotes Pearle’s Selection Correlation Coefficient, and PCC can be calculated by the following formula: (13) PCC=1N∑i=0N(IMR(i)−μIMR(i))(Ioutput(i)−μIoutput(i))σIMR(i)σIoutput(i) where μ and σ denote the mean and variance of the ird image slice, respectively.

The loss function is an important indicator of whether the parameter settings of the generative adversarial network are reasonable. The generative adversarial neural network generator and discriminator are composed of different functions: the generator is defined as G, the input is z, and the parameter is β(G). The discriminator is defined as D, the input is x, and the parameter is β(D), and each function of the generator and discriminator has a response parameter. The discriminator J^D(β^D,β^G) and generator J^G(β^D,β^G) can only achieve the goal of minimizing the loss function by adjusting the parameters β^D and β^G of each sub. The performance of both the generator and the discriminator is affected by β^D and β^G, but the generator and the discriminator cannot control each other’s parameters.

3)

Generator and discriminator loss function analysis results

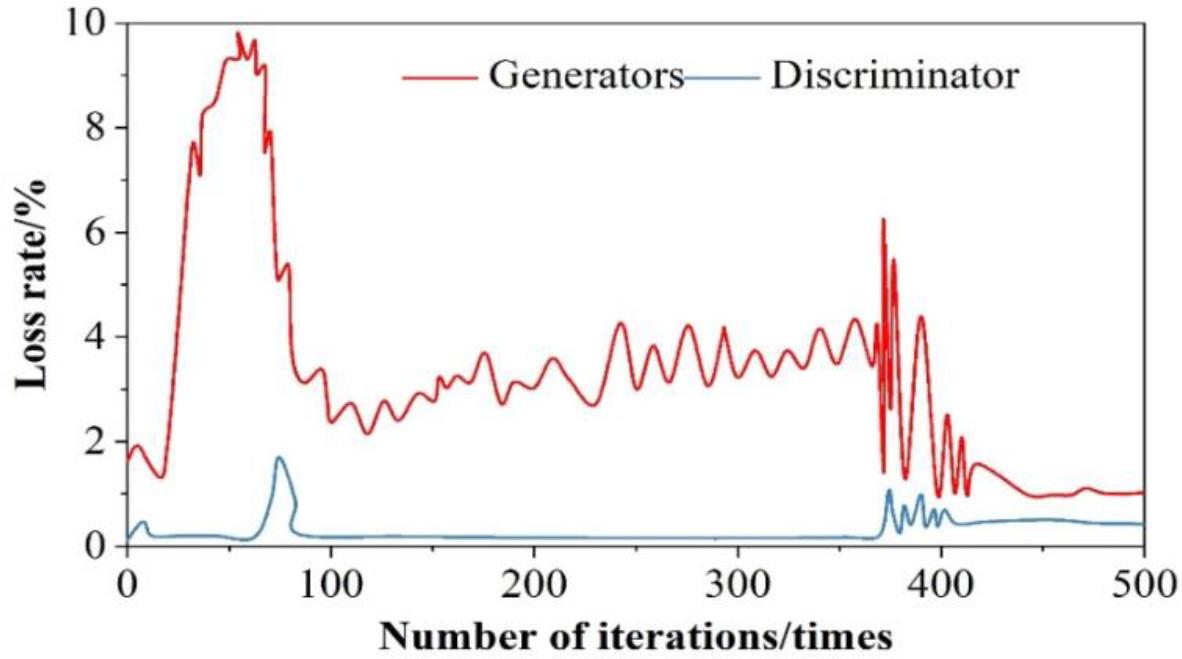

The result of generator and discriminator loss function analysis is shown in Fig. 6, the output of the discriminator is expected to be as close as possible to 1 (judged to be real data), so the expectation is close to 1, and the training loss rate is 0 when logD(x) = 0. On the contrary, if the discriminator’s discriminative ability is weak, and the output is close to 0, then logD(x) is negative infinity, and –logD(x) is positive infinity, therefore, it will result in the loss rate of the generative adversarial neural network is more than 50 percent . Expecting the output of discriminator D[G(z)] to be as close to 0 as possible, then 1–D[G(z)] is infinitely close to 1, and thus log{1–D[G(z)]} is infinitely close to 0. The loss rate of the generative adversarial neural network is 0, and the training loss rate is gradually stabilized.

Figure 6.

Analysis results of generator and discriminator loss function

4)

Test and training loss rate analysis

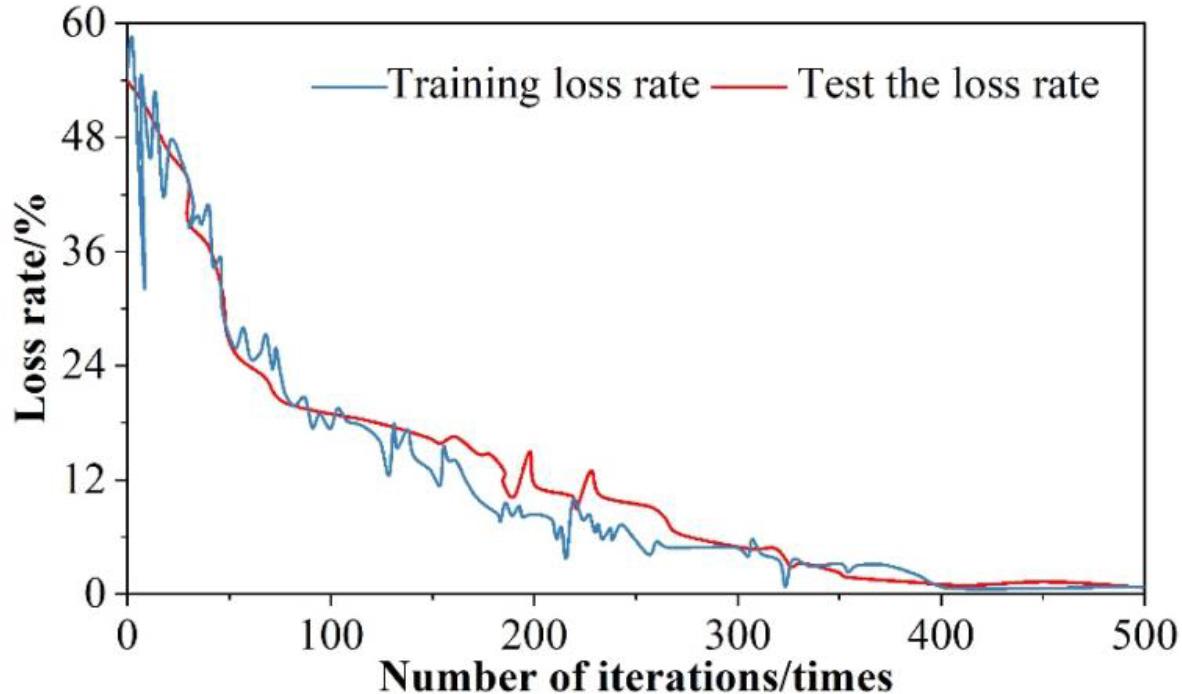

Separate test set and training set put into the model of this paper for training, to get the results of the loss value of the test set and the training set, the results of the analysis of the loss rate of testing and training are shown in Figure 7. It can be seen that the loss rate of the generative adversarial neural network in training is 0. The test samples are put into the trained neural network for the training of MRI judgment of myocarditis, and through the continuous upgrading and evolution of the generator and discriminator, the fluctuation of the training compliance rate is getting smaller and smaller and decreasing, and ultimately approaching to 0 infinitely.

Figure 7.

Test and training loss rate analysis results

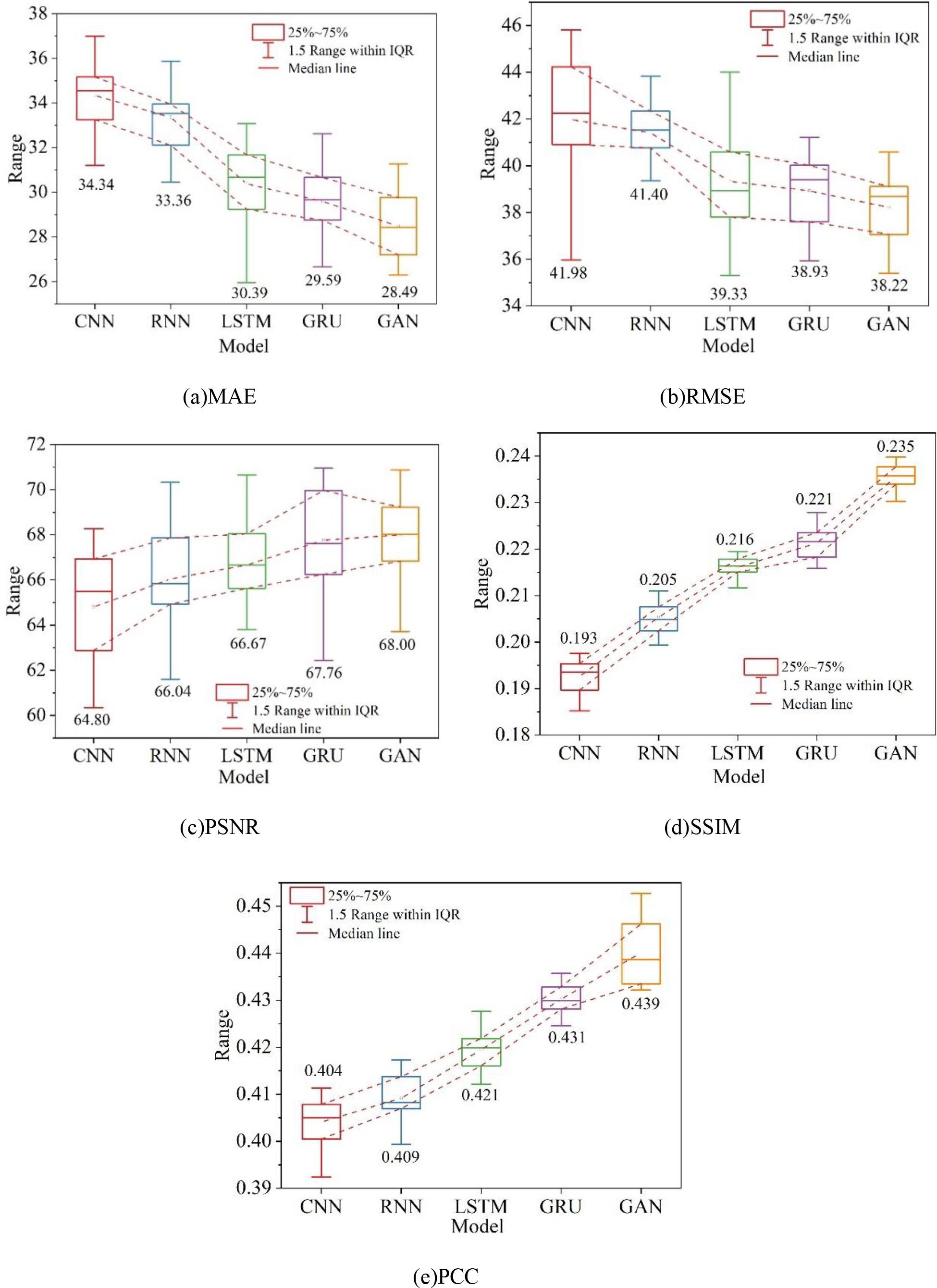

In order to verify the superiority of the two-branch adversarial network model, the experimental results are quantitatively compared with the representative medical image generation methods in recent years, which are CNN, RNN, LSTM, and GRU, respectively.For the five methods of the experiments, the average values of the data tests are given, and the overall five metrics (MAE, RMSE, PSNR, SSIM, and PCC) of the model quality are calculated. The experiments were all conducted under the same conditions, and the results of quantitative evaluation of different methods on dataset A are shown in Fig. 8, and the results of quantitative evaluation of different methods on dataset B are shown in Fig. 9, in which (a) to (e) are the MAE, RMSE, PSNR, SSIM, and PCC, respectively. The experimental results intuitively reflect the performance of CNNs and RNNs in enhancing the MRI images of myocarditis. The reason for this is that CNNs and RNNs are designed for general images and therefore have shortcomings in processing medical images. Overall the methods in this chapter perform better in terms of Mean Absolute Error (MAE) compared to the other methods, and all other evaluation metrics are also improved to different degrees. On dataset A and dataset B, the distribution of values of RMSE and SSIM metrics is slightly larger than that of GRU, and the stability needs to be strengthened, but the other metrics perform well. Comprehensive analysis of the proposed in this chapter based on generative adversarial network enhancement of myocarditis MRI diagnostic effect than other generative methods have been improved, and have reference value for the treatment of myocarditis.

Figure 8.

Quantitative evaluation of results by different methods on dataset A

Figure 9.

Quantitative evaluation of results by different methods on dataset B
